| 20L Tin Pail | Product Technical Specification Sheet | Edited by: | |||
| Approved by： | |||||
| Item | Material | Thickness (mm) | Tin Coated | ||
| Material | Body | ET | 0.35 ± 0.01 * | 2.8/2.8 * | |
| Lid | ET | 0.35 ± 0.01 * | 2.8/2.8 * | ||
| Bottom | ET | 0.35 ± 0.01 * | 2.8/2.8 * | ||
| Outside | Inside | ||||
| Printing/Liner | Body | White coating * | Epoxy golden coating * | ||
| Lid | White coating * | Epoxy golden coating * | |||
| Bottom | Epoxy golden coating * | Epoxy golden coating * | |||
| Weld Repaint | Clear lacquer * | Gray refinidh coating * | |||
| Weight | Body weight | 1220 ± 40g * | |||
| Lid weight | 310 ± 15g * | ||||

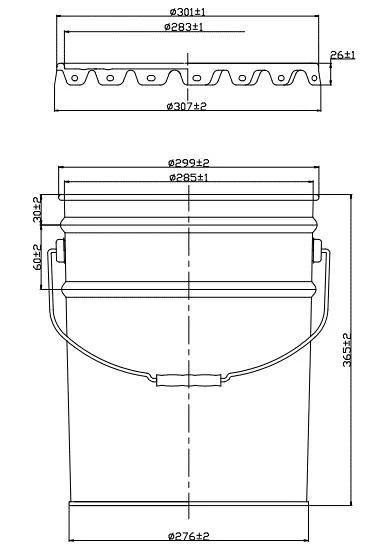

| Dimension | Top Diameter | 299 ± 2mm | |||
| Bottom Diameter | 276 ± 2mm | ||||
| Height | 365 ± 2mm | ||||
| Bead | Uppe bead30±2mm to the top | ||||
| 60 ± 2mm between two beads* | |||||
| Applicable to | Water based paint* | ||||
| UN Homologation | N/A * | ||||
| Packaging | Container | Loading Qty (sets) | Pallet Size (mm) | Lid/Cap Carton Size (mm) | Qty per pile |
| 40GP | 4560 | 1100*1100*120 | 630*320*245 | 19 | |
| 5860 | NA | 630*320*245 | 20 | ||
| 40HQ | 5280 | 1100*1100*120 | 630*320*245 | 22 | |
| 6984 | NA | 630*320*245 | 24 | ||
 |
Notes:1. *: Customizable 2. Packaging is flexible | ||||
