| 1 Gallon Metal Round Can | Product Technical Specification Sheet | Edited by: | |||
| Approved by： | |||||
| Item | Material | Thickness (mm) | Tin Coated | ||
| Material | Body | ET | 0.23 ± 0.01 * | 2.8/2.8 * | |
| Ring | TFS | 0.24 ± 0.01 * | NA | ||
| Lid | TFS | 0.24 ± 0.01 * | NA | ||
| Bottom | TFS | 0.24 ± 0.01 * | NA | ||
| Printing/Liner | Outside | Inside | |||
| Body | Clear lacquer * | Epoxy yellow coating* | |||
| Ring | Laminated with PET * | Laminated with PET * | |||
| Lid | Laminated with PET * | Laminated with PET * | |||
| Bottom | Laminated with PET * | Laminated with PET * | |||
| Weld Repaint | Clear lacquer* | Gray refinish coating * | |||
| Weight | Body weight | 333 ± 5g * | |||
| Lid weight | 10 ± 2g * | ||||

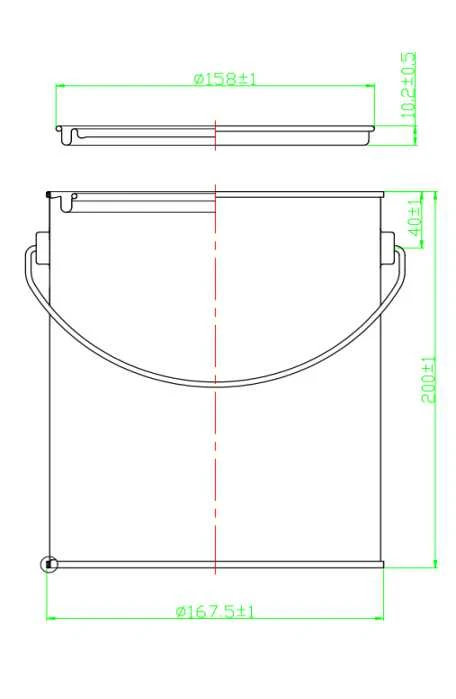

| Dimension | Top Diameter | 167.5 ± 1mm | |||
| Bottom Diameter | 167.5 ± 1mm | ||||
| Height | 200 ± 1mm * | ||||
| Bead | NA * | ||||
| Closure | NA | ||||
| Applicable to | Solvent based paint | ||||
| UN Homologation | N/A * | ||||
| Packaging | Container | Loading Qty (sets) | Pallet Size (mm) | Lid/Cap Carton Size (mm) | Qty per pile |
| 40GP | 9600 | 1200*1100*140 | 10 | ||
| 11297 | NA | 11 | |||
| 40HQ | 11520 | 1200*1100*140 | 12 | ||
| 13351 | NA | 13 | |||
 |
Notes: 1. *: Customizable 2. Packaging is flexible |
||||
